Overview and concepts

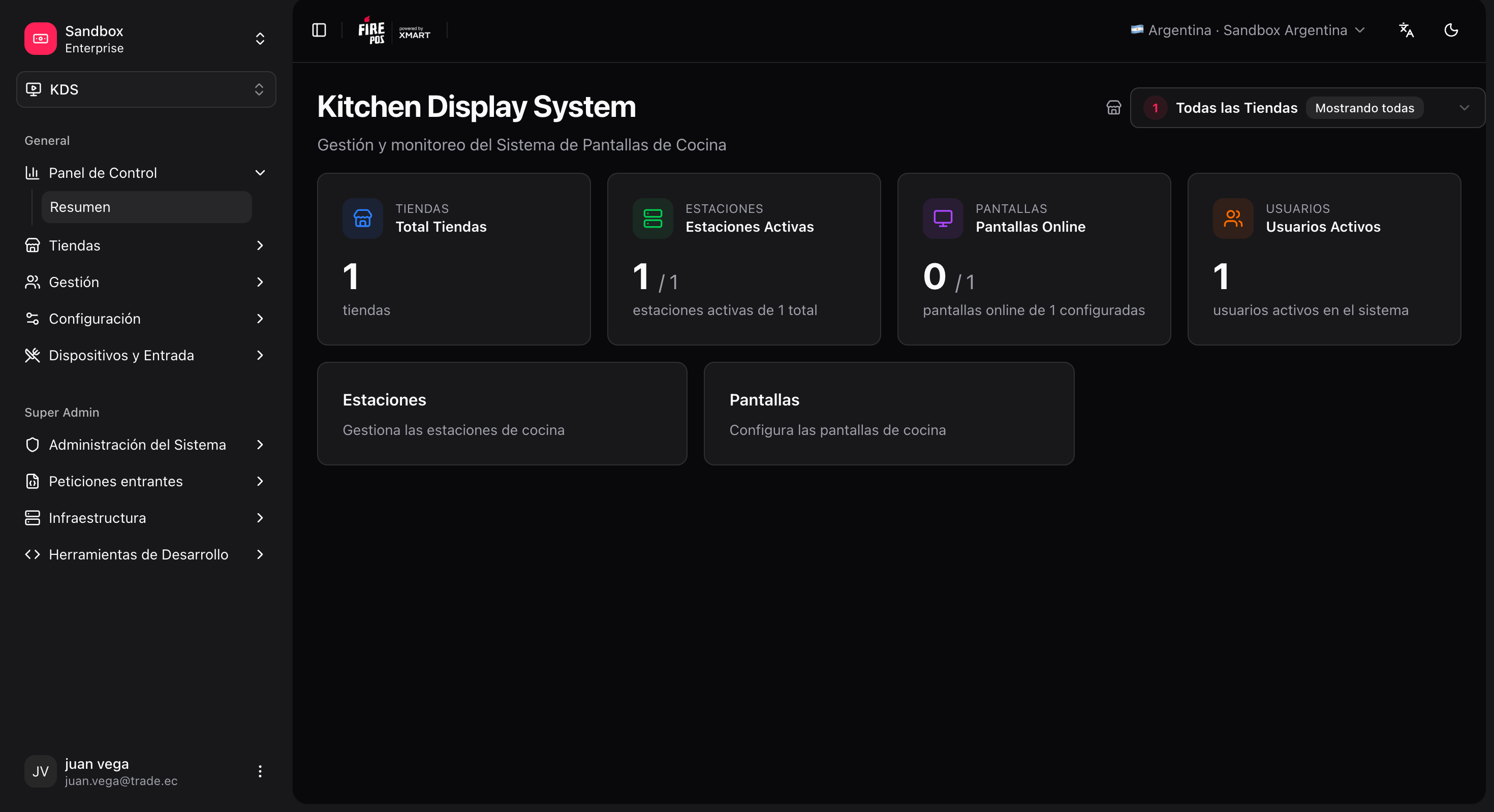

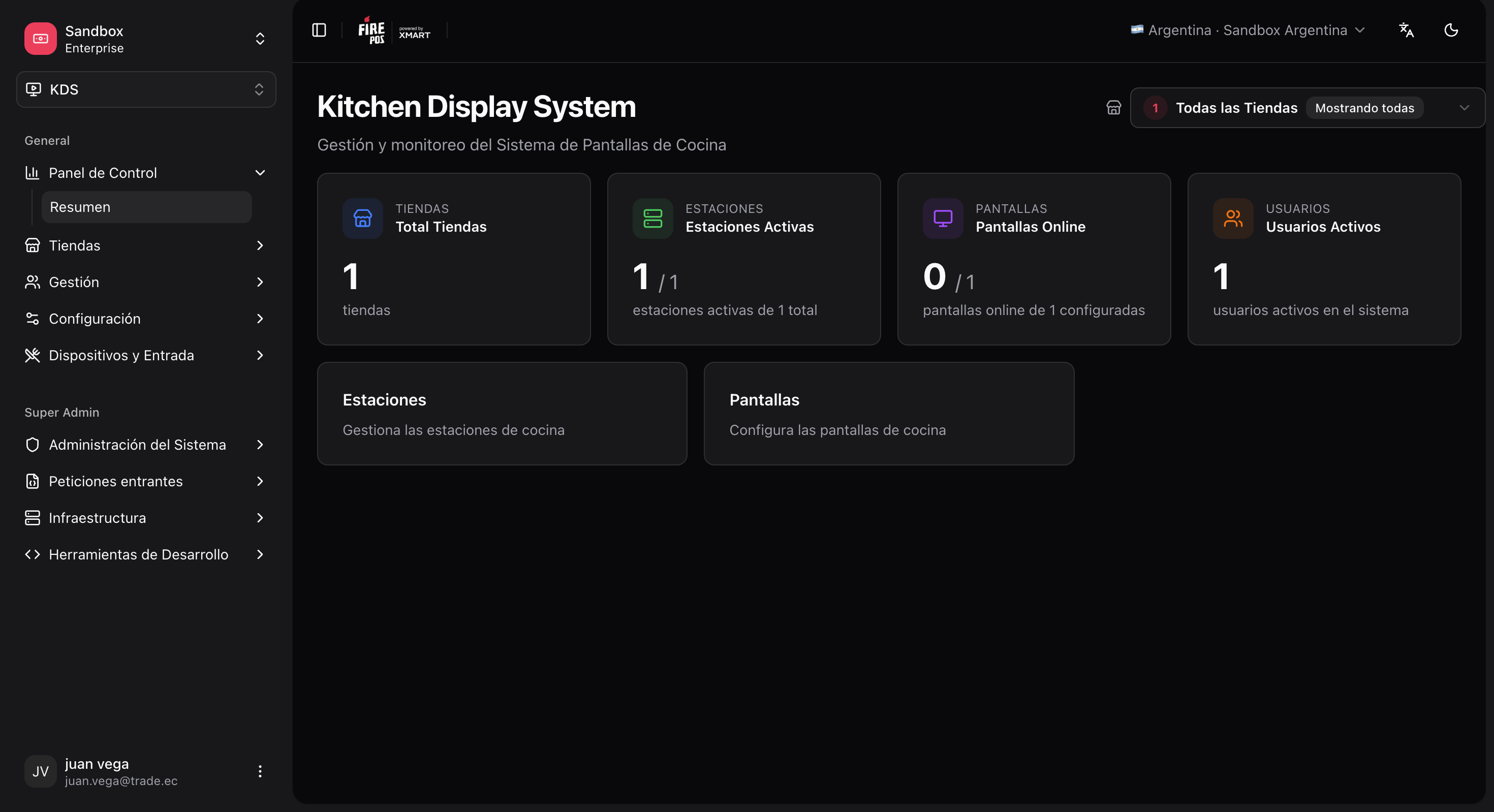

This section explains how to set up and administer a digital kitchen (KDS) from the Fire backoffice, without going into code. It is meant for operations, store rollout, and product support. Where you work: the KDS menu, under /kds/admin. For the day-to-day operator actions on the kitchen screen, see Screen actions and Order display. To enroll kitchen TVs without email, see Pair a kitchen device. Supervisors monitoring the whole store use the Operator board.

Before you begin

What you need

Requirement	Detail
Access to the KDS module	A role with KDS permissions on the account.
A KDS store created	KDS → All Stores → Create store. When you create a new store, the system can take you to the initial setup wizard.
A physical screen (fire-kds)	Each kitchen TV/tablet runs fire-kds. Prefer device pairing (6-digit code) so the device joins the store without an email invite.

For most stores the default configuration is enough: generic stations, routing that falls back to all active stations, and station rules set to “accept everything”. Fine-tuning by item_type, channel, or service is optional and covered later.

How the pieces fit together

Store
 ├── Stations      → logical kitchen "queues" (Grill, Fry, Assembly, Dispatch…)
 ├── Screens       → physical devices that show tickets
 │    └── Assignment → which stations each screen shows (screen ↔ station)
 ├── Routing strategy → which station each line goes to (default: fallback to all)
 ├── Keyboard device  → USB/BT keyboard linked to a screen
 │    └── Keyboard layout → which key runs which action (bump, recall, etc.)
 └── Ready-pickup printing → optional; a single screen per store

Mental rule: routing decides which production station each item goes to; the screen decides which stations the operator sees on that monitor.

Two types of stations

Not every station is configured the same way:

Type	Workflow stage	Chosen by item_type in routing?	What it receives
Production	`PRODUCTION`, `PRE_ASSEMBLY`	Yes — mappings + fallback	Each line of the order (item by item).
Convergence	`ASSEMBLY`, `DISPATCH`	No — they never appear in mapping rows	The whole ticket once production has advanced (convergence flow).

In Routing → Mappings, the backoffice only lets you pick production / pre-assembly stations. Assembly and dispatch are not item-routable: you cannot set “BURGER → ASSEMBLY” in a mapping row. Instead:

ASSEMBLY / DISPATCH receive the whole ticket, not line by line. With Production required = Yes, that happens when the production lines are completed (convergence gates). With Production required = No (assembly-only kitchen), the ticket appears as soon as the order arrives.
You set convergence distribution in the strategy (which assembly or dispatch station receives the ticket when there are several).
On the assembly/dispatch station you can filter by sales channel (POS, KIOSK, UBER_EATS…) or fulfillment type (DINE_IN, DELIVERY, TAKEOUT…) — not by item_type.

Kitchen patterns

Simple kitchen (single queue)

There are two valid patterns for a small kitchen. The one running in production today is B (assembly-only).

Pattern B — single ASSEMBLY station (production) ⭐
Pattern A — KITCHEN production station

Minimal real kitchen: 1 ASSEMBLY station + 1 screen + Production required = No.

Step	What to do
1	Store settings: Production required = No.
2	Create one `ASSEMBLY` station (convergence on).
3	Create one screen; assign only `ASSEMBLY`.
4	Active routing (empty mappings are fine).
5	(Optional) Ready-pickup printing on that screen.
6	Order display at `/waitlist/{storeId}`.

Order → ASSEMBLY (immediate) → cook → bump ticket → order display "Ready" + optional printing

Model the kitchen as pure “production” (no ASSEMBLY stage):

Step	What to do
1	Create one station with stage `PRODUCTION` (e.g. code `KITCHEN`).
2	Create one screen and assign only that station.
3	Create routing with no mappings and fallback pointing to that single station.
4	Station rules set to Accept all item types.
5	Production required = Yes (default).

Order → (no mapping) → fallback → KITCHEN station → single screen → bump per line

If the kitchen grows later, add production stations, turn Production required = Yes, and map by item_type. ASSEMBLY then becomes the expo where the ticket converges once production is done.

Operational flow (assembly-only)

This is the setup used in small stores in production today: one assembly station, one screen, no separate grill/fry/dispatch.

Order arrives — the POS/kiosk sends the order to the KDS. A ticket is created with its lines.
Order display: “Preparing” — while the order is SENT_TO_KITCHEN, its code shows in the preparing area.
Ticket on screen — with Production required = No, the ticket enters the ASSEMBLY column directly.
Operator cooks — sees the whole ticket: code, channel, service, items, and modifiers. Can hold if needed.
Bump — in ASSEMBLY this is one bump per order (whole ticket).
Kitchen cycle closes — with no DISPATCH station, the assembly bump is the final step: order → ready for pickup, KDS ticket → DONE.
“Sent” snackbar — appears briefly with Undo (configurable window, ~3 min).
Order display: “Ready” — the same code jumps to the ready-for-pickup area.
Printing (if configured) — fiscal slip and/or delivery ticket.
Customer collects — using the on-screen code or the printed ticket.

For the full operator experience of these steps, see Screen actions.

Multi-station kitchen (reference)

For kitchens with grill + assembly + dispatch, the flow is longer:

Order
  └─► Routing by item_type → PRODUCTION stations (GRILL, FRY, KITCHEN…)
        └─► Optional rules (channel / service / item)
              └─► Production screen → bump PER LINE
                    └─► Convergence gate opens when production finished
                          └─► ASSEMBLY (whole ticket) → bump
                                └─► DISPATCH (optional) → bump
                                      └─► READY_FOR_PICKUP + order display + printing

Store-level KDS options (fire-kds)

After the backoffice layout exists, store managers can tune kitchen behaviour in fire-kds → Settings → KDS (and per-screen overrides on the production screen):

Option	What it controls
Display defaults	Font scale, card size, new-order alert (visual ± sound). Screens can follow the store or keep local values.
Line strike	Require tapping each parent line before bump, optionally limited to certain stations.
Customer name on tickets	Show or hide the customer name, optionally only for selected channels / fulfillment types.
Order display filters	Hide fulfillment types (e.g. delivery) from the customer-facing turnero.
Cancellation reasons	Which Fire cancellation reasons operators may pick when cancelling from KDS / operator board.

Next: Set up a store · Pair a kitchen device · Operator board.
